The main types of solar panels are Monocrystalline, Polycrystalline, Thin-Film, PERC, Bifacial, and advanced technologies like TOPCon and HJT. Each type varies in efficiency, cost, and ideal usage.
Here’s a detailed breakdown to help you choose the right panel for your solar energy goals:

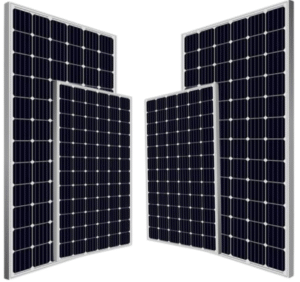

1. Monocrystalline Solar Panels
Efficiency: High (18–22%)
Appearance: Uniform black color
- Features:
- Made from a single crystal structure
- Space-efficient and long-lasting
- Performs well in low-light conditions
- Best for: Homes and businesses with limited roof space

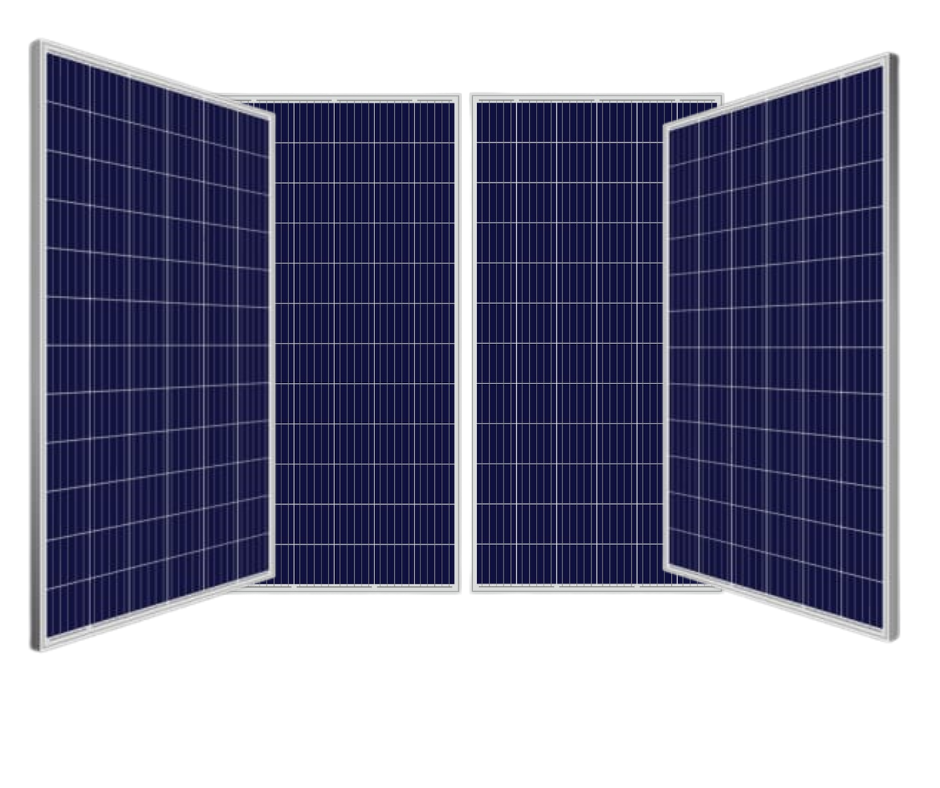

2. Polycrystalline Solar Panels
- Efficiency: Moderate (15–17%)
- Appearance: Blue, speckled look
- Features:
- Made from multiple silicon fragments
- More affordable than monocrystalline
- Slightly lower performance in high heat
- Best for: Budget-conscious installations with ample space

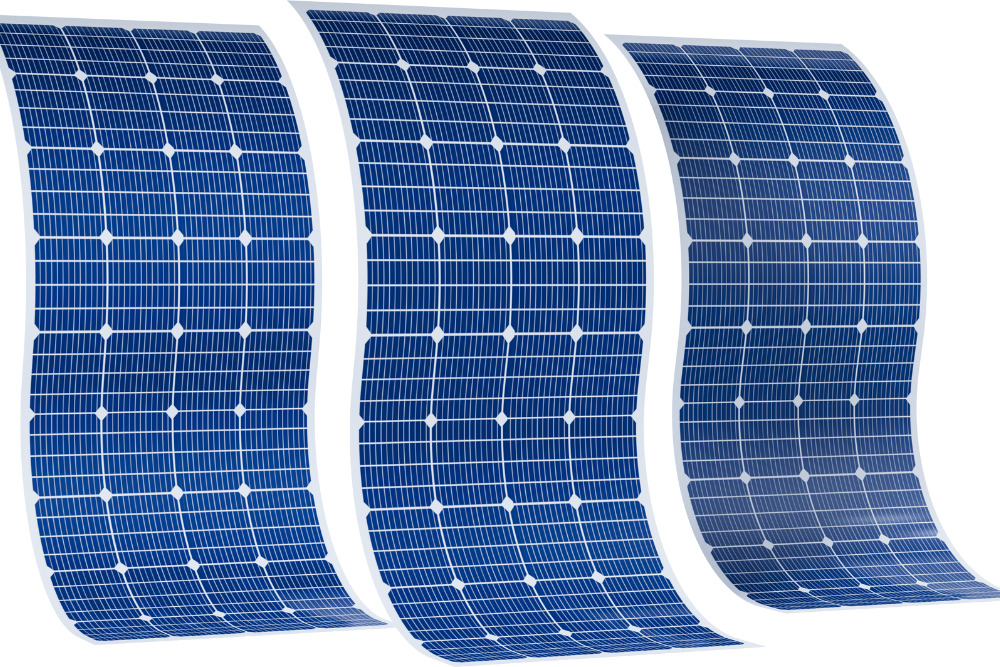

3. Thin-Film Solar Panels
- Efficiency: Low to Moderate (10–13%)
- Appearance: Flexible and lightweight
- Features:
- Made from materials like cadmium telluride (CdTe) or amorphous silicon
- Easy to install on curved surfaces
- Shorter lifespan and lower efficiency
- Best for: Portable applications, vehicles, and unconventional surfaces

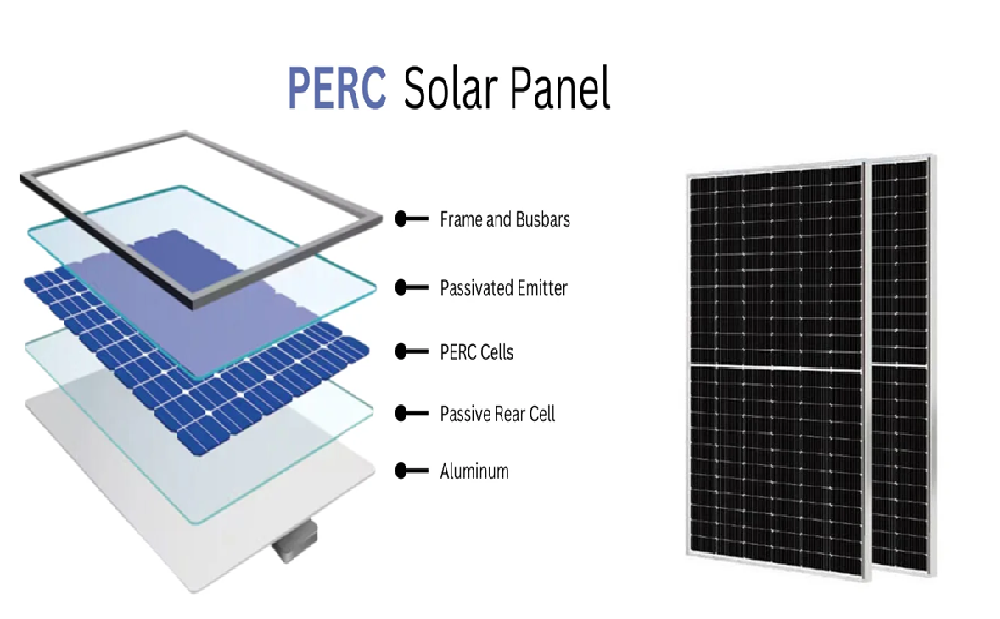

4. PERC (Passivated Emitter Rear Cell) Panels
- Efficiency: Higher than standard mono/poly (up to 23%)
- Features:
- Enhanced light absorption and reduced electron recombination
- Better performance in hot climates
- Best for: Residential and commercial setups aiming for high ROI

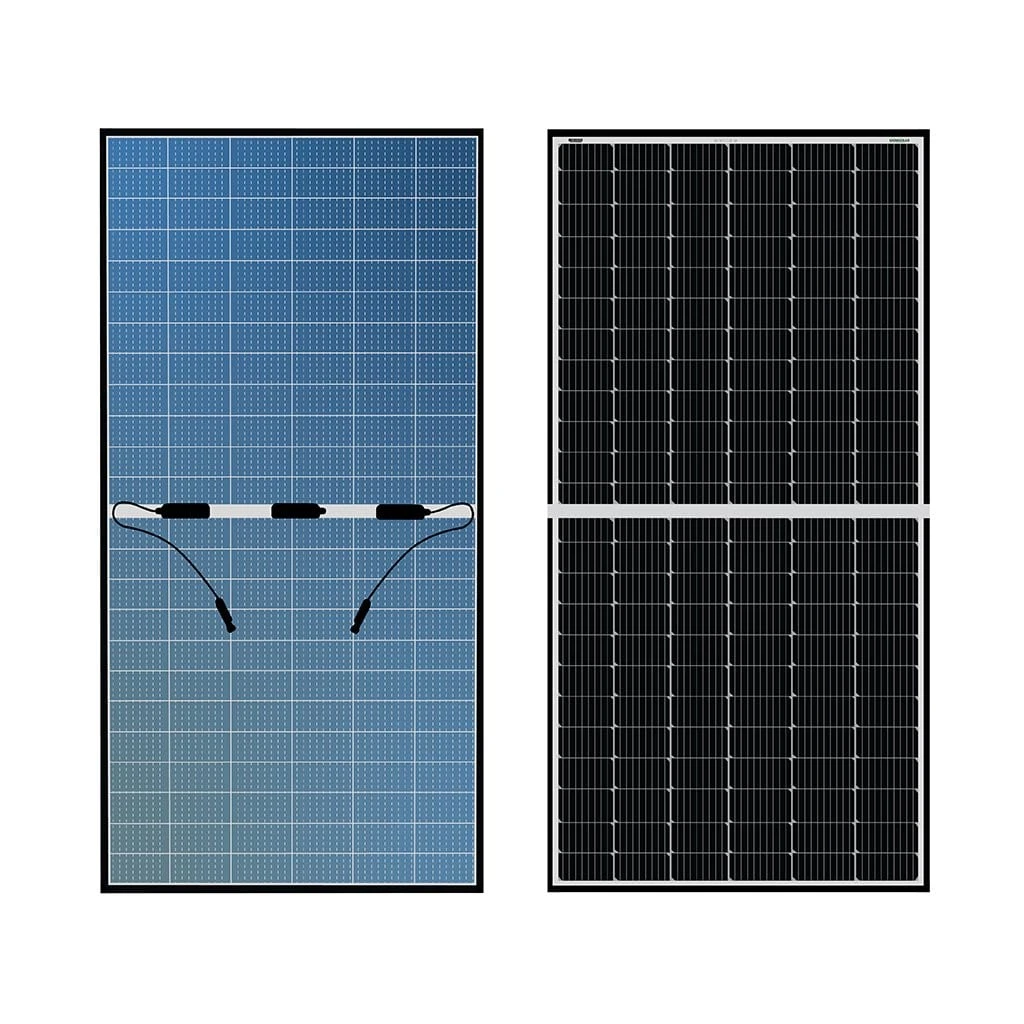

5. Bifacial Solar Panels
- Efficiency: Up to 27% (with optimal reflection)
- Features:
- Captures sunlight from both front and rear sides
- Ideal for reflective surfaces like white rooftops or ground-mounted systems
Best for: Utility-scale and premium installations

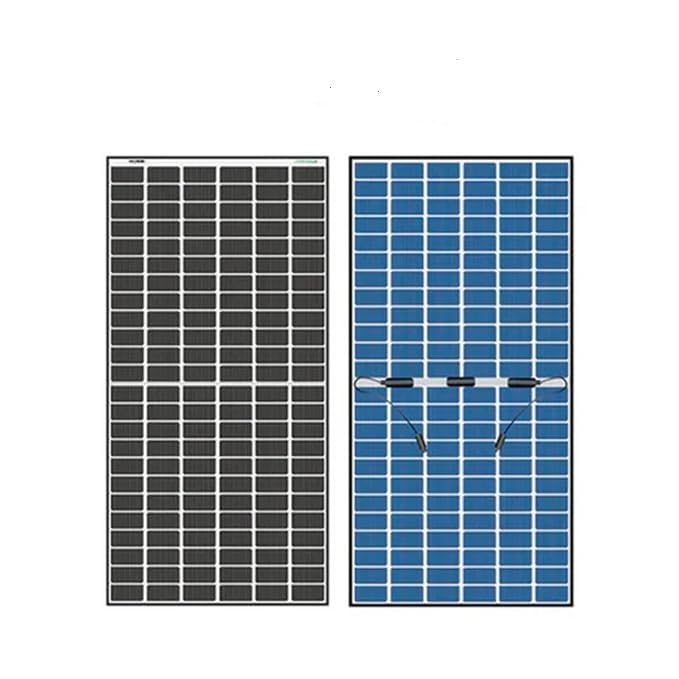

6. TOPCon & HJT Panels (Next-Gen Technologies)
- Efficiency: Very High (up to 25–28%)
- Features:
- TOPCon: Tunnel oxide passivated contact for better electron flow
- HJT: Combines crystalline and amorphous silicon for superior performance
- Longer lifespan and better temperature tolerance
- Best for: Cutting-edge projects and future-proof investments
Choosing the Right Panel
- Efficiency vs. Budget: Monocrystalline and PERC offer high efficiency; Polycrystalline is more economical.
- Space Constraints: Go for high-efficiency panels if roof space is limited.
- Environment: Bifacial and PERC panels perform better in hot or reflective environments.
